Sale
-30%
-30%
$599.00$849.97
1. Fiberglass back sheet will not cause air pockets to form on the back of solar panels. And fiberglass back sheet with sea- & saltwater resistant, its more suitable for marine environment.
Others White PET back sheet is not heat resistant. Air pockets form on the White PET back sheet after a few months. Because PET is thermolabile and easily swells in high temperatures.
2. Flexible solar panel is made of ETFE film, while other brands are made of cheap PET film. ETFE integrated lamination solar panels have non-adhesive surface properties. They are highly stain-resistant and easily get cleaned by the rain.
Other cheap PET film is easy for them to collect dust, sand and dirt to cause hot spots on the surface of PET panels. Then shade reduces the efficiency of solar panels and shortens the lifetime of solar modules because of this hot spot.And PET film is not scar-proof
Solar panels are one of the best quality high-efficiency flexible solar panels for use with RVs, marine yachts, mobile homes.
Say goodbye to PET flexible solar panels.
|
Performance of ETFE vs. PET |
||
|
Material |
ETFE (Ethylene Tetrafluoroethylene) |
PET (Polyethylene terephthalate) |
|
Combination |
Ultra lightweight and durable. The combination between ETFE and back sheet is much stronger than PET. |
Combination of PET and back sheet cracks easily, is not durable, and also not waterproof. |
|
Thicknes(mm) |
Includes a 0.025mm thin, UV resistant, layer of protection. Total thickness less than 0.1mm. |
0.15mm thick. Solar cells break easily due to low hardness. |
|
Light transmission |
95% transparency offers excellent efficiency in terms of light to electricity conversion. |
90% to 93% transparent results in lower efficiency in terms of light to electricity conversion. |
|
Surface adhesion |
ETFE has non-adhesive surface properties. Highly stain-resistant and easily gets cleaned by the rain. |
Adhesive surface often gets covered with dust or other debris, significantly affecting the output of solar panel. |
|
Lifetime |
Lifetime of 10 years. Resists aging, deteriorates slowly. |
Lifetime of at most 5 years. Easily forms air pockets and peels off. |
|
Corrodibility |
Highly resistant to seawater corrosion. |
Not acid and alkali resistant, making it totally unsuitable for use in marine environment. |
|
Flammability |
Highly flame retardant. Suitable for use in temperatures ranging from -65°C to +150°C. Can be installed safely in hot climates. |
Not suitable for use in high temperature regions due to short-term heat resistance. |
|
Applicative effects |
Absorbs sunlight. Does not reflect it. |
Reflects a large amount of sunlight, producing glare and creating traffic risks to cars and airplanes. |
3. Please do NOT bend the semi-flexible solar modules more than 10 degrees and easily mounted on an RV, boat, cabin, tent, or any other irregular surface.
Note: Please do not reverse bending flexible solar panel when you receive it and install it. When the solar panel reverse bending, the solar cells may be damaged for stress concentration on the cells, and solar panel's output current will reduce.

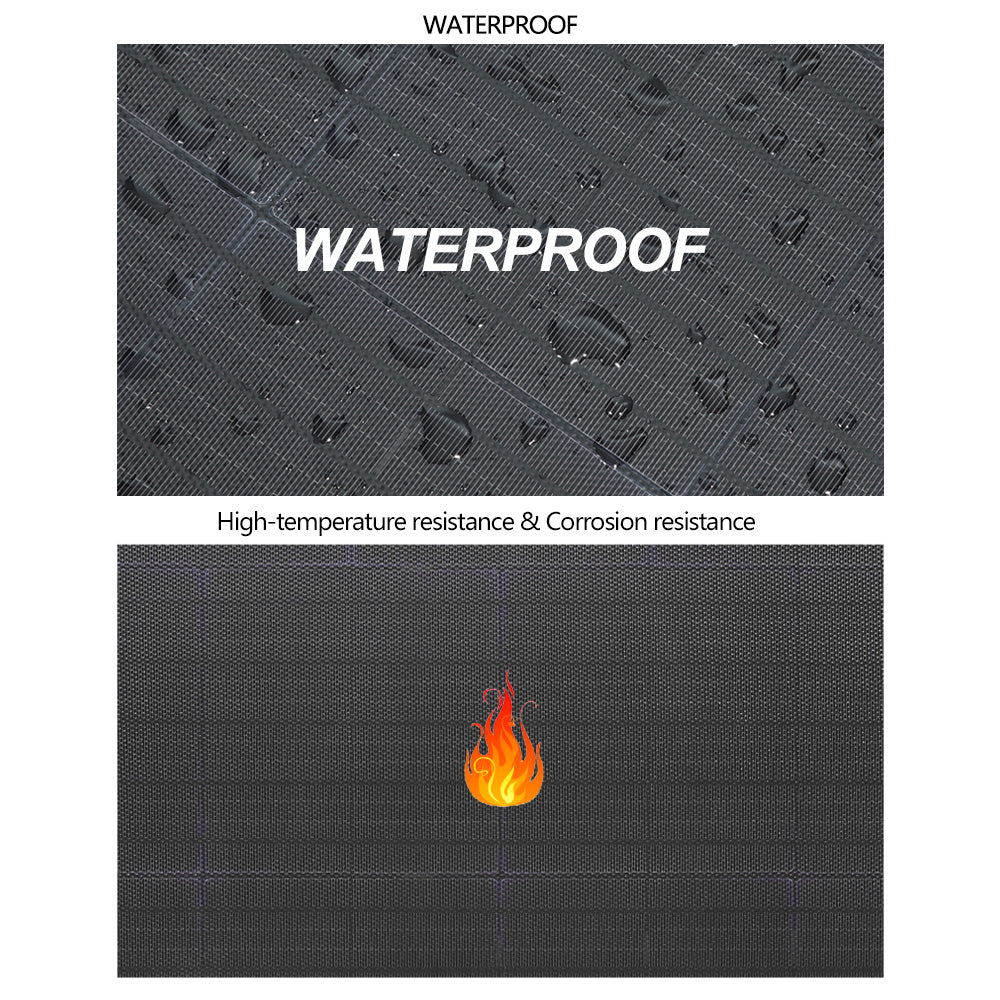

4. At only 2.5mm thick, the solar panel is powerful, waterproof, lightweight, durable, and highly resistant to the harsh operating conditions of a marine environment. Can be installed conveniently and mounted safely on mobile surfaces such as motor homes.

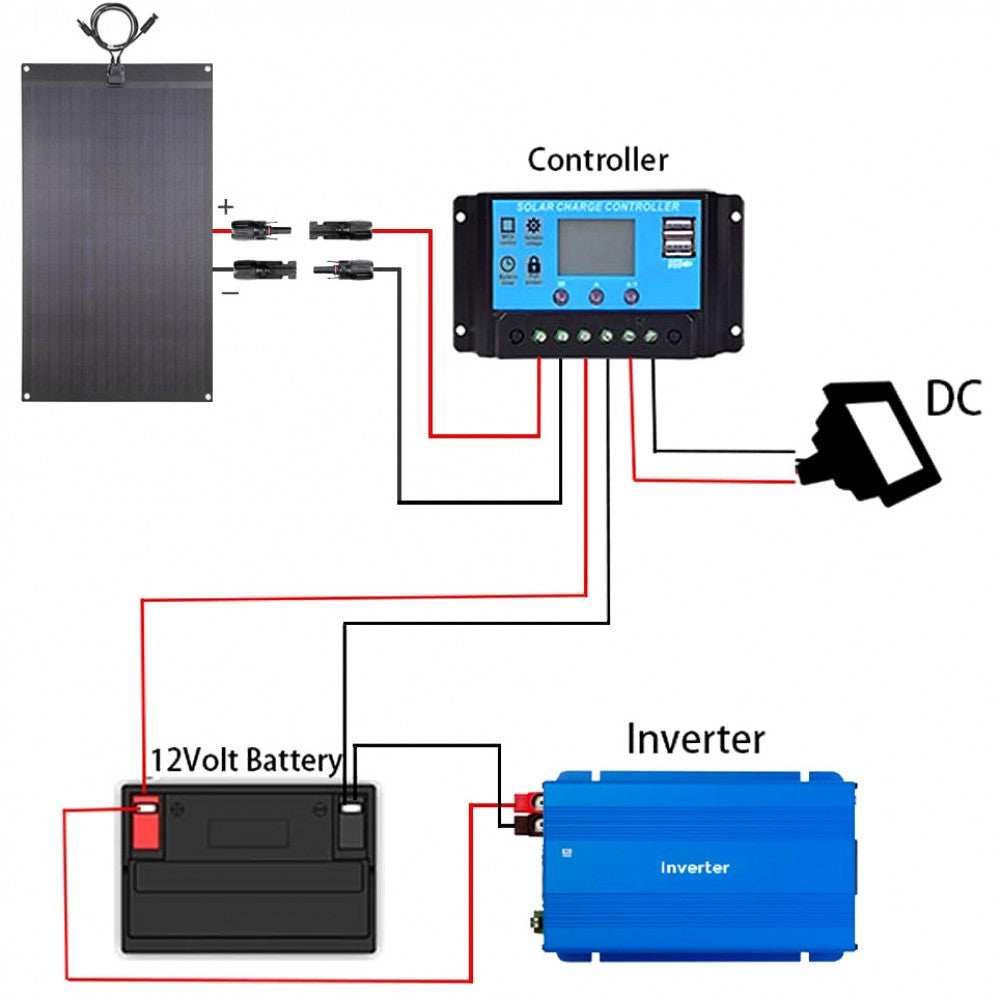

If you are planning to use this solar panel to charge a 12V battery or battery bank, please note this panel requires a solar charge regulator / controller to protect against overcharge and discharge.
Electrical Information:
Peak power: 100W
Solar cell efficiency: 21.5/%
Maximum power voltage: 18V
Maximum power current: 5.56A
Open circuit voltage: 21.24V
Short circuit current: 6.11A
Power allowance range: +/-3%
Maximum system voltage: 500V
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
Material Information:
Laminated for weather resistance
Laminated with fiberglass + ETFE + Silicon cell + EVA + Tedlar

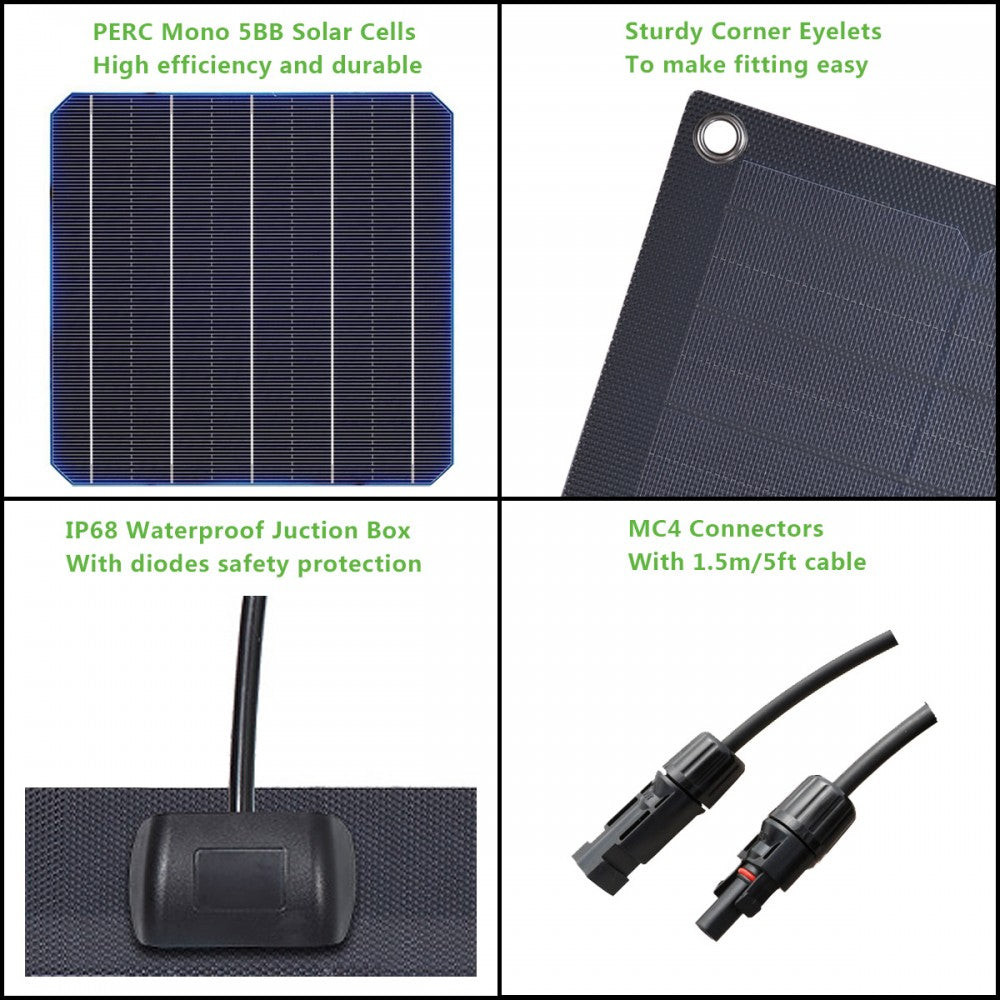

Solar cells: Monocrystalline
Dimensions: check the drawing picture
Net Weight: 3.5kg/7.7 lbs
Back sheet: Fiberglass
J-Box: IP 67 rated
Package Includes:

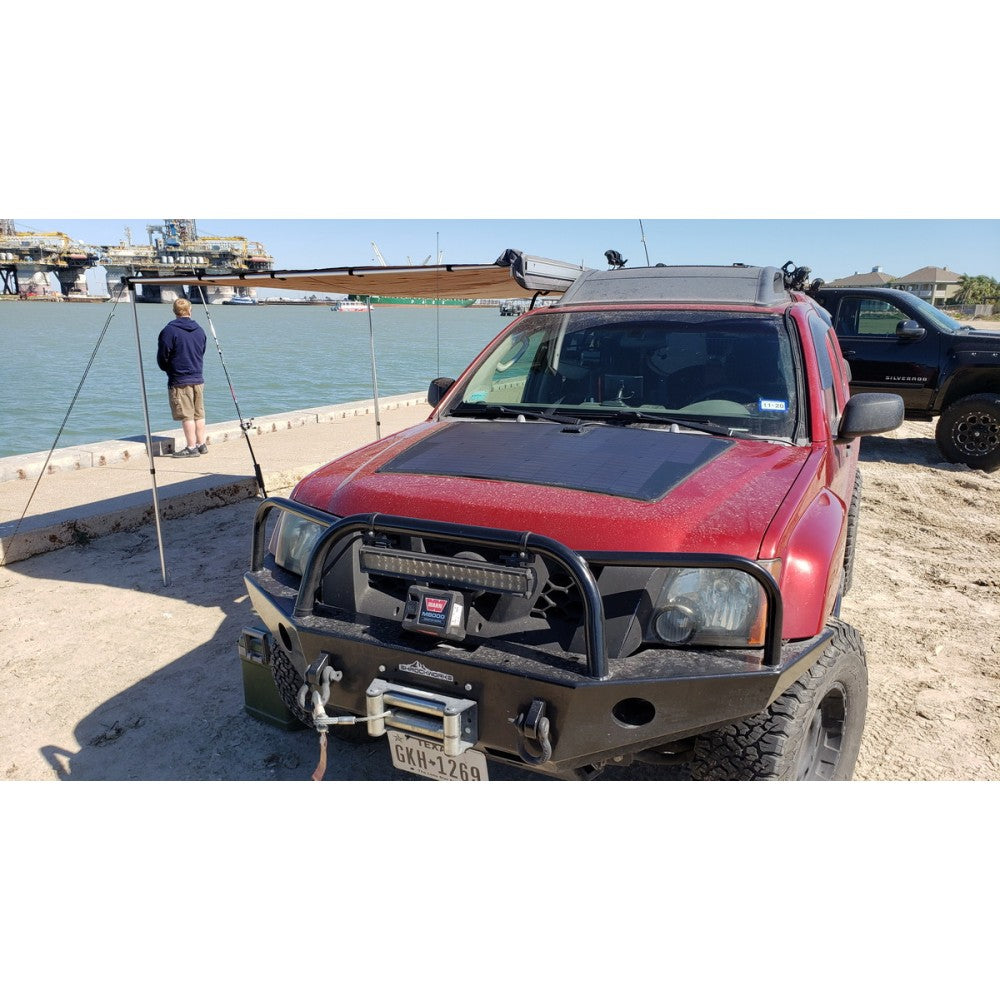

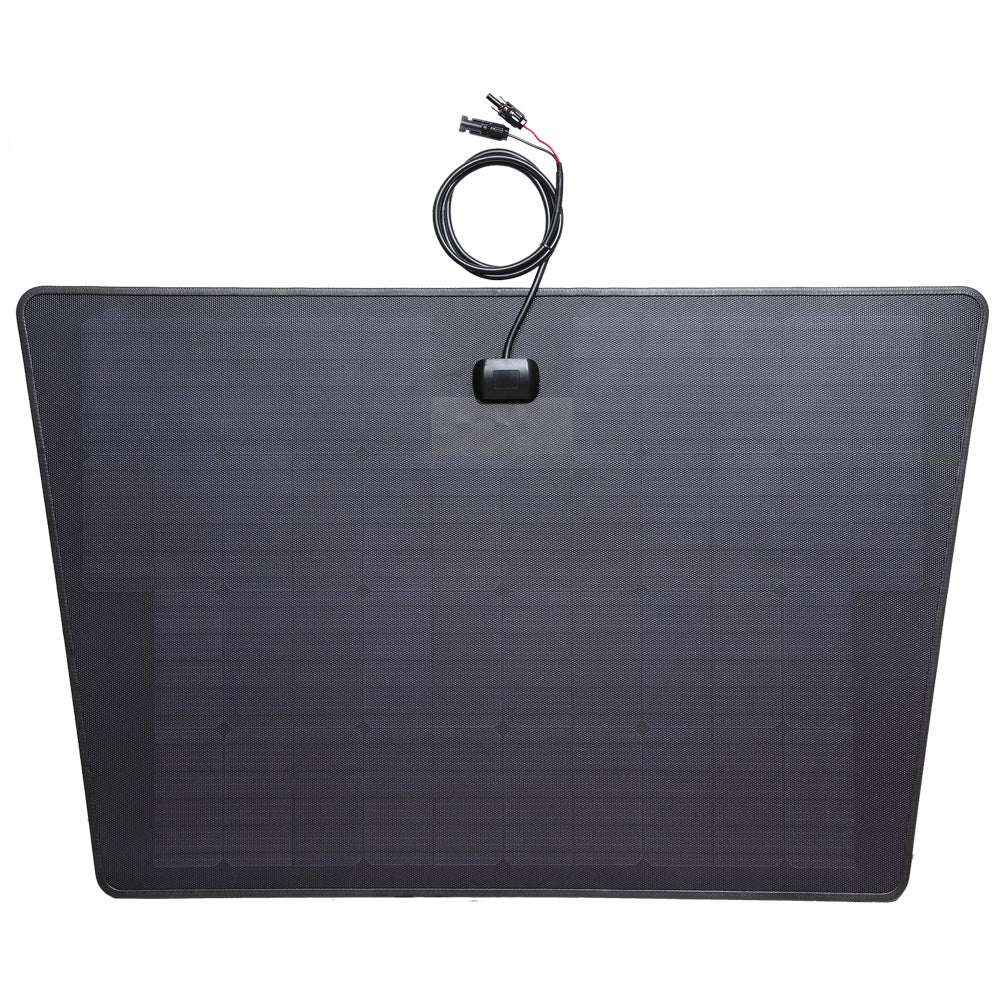

1x 100W Black flexible solar panel with Rubber strip for Nissan Xterra
