A High performance solar cells is the decisive factor for top quality solar modules.
* First-rate efficiencies and excellent output consistency.
* The uniform color of the cell surface looks more beautiful.
* PERC is a good improvement on the conventional standard solar cell, density of energy increases and also ROI.
* Advanced diffusion technique ensuring the homogeneity of energy conversion efficiency of the cell.
* PERC solar cells component efficiency is as high as 22%, generating more power per unit area. The conventional standard solar cell is only 18-19%.

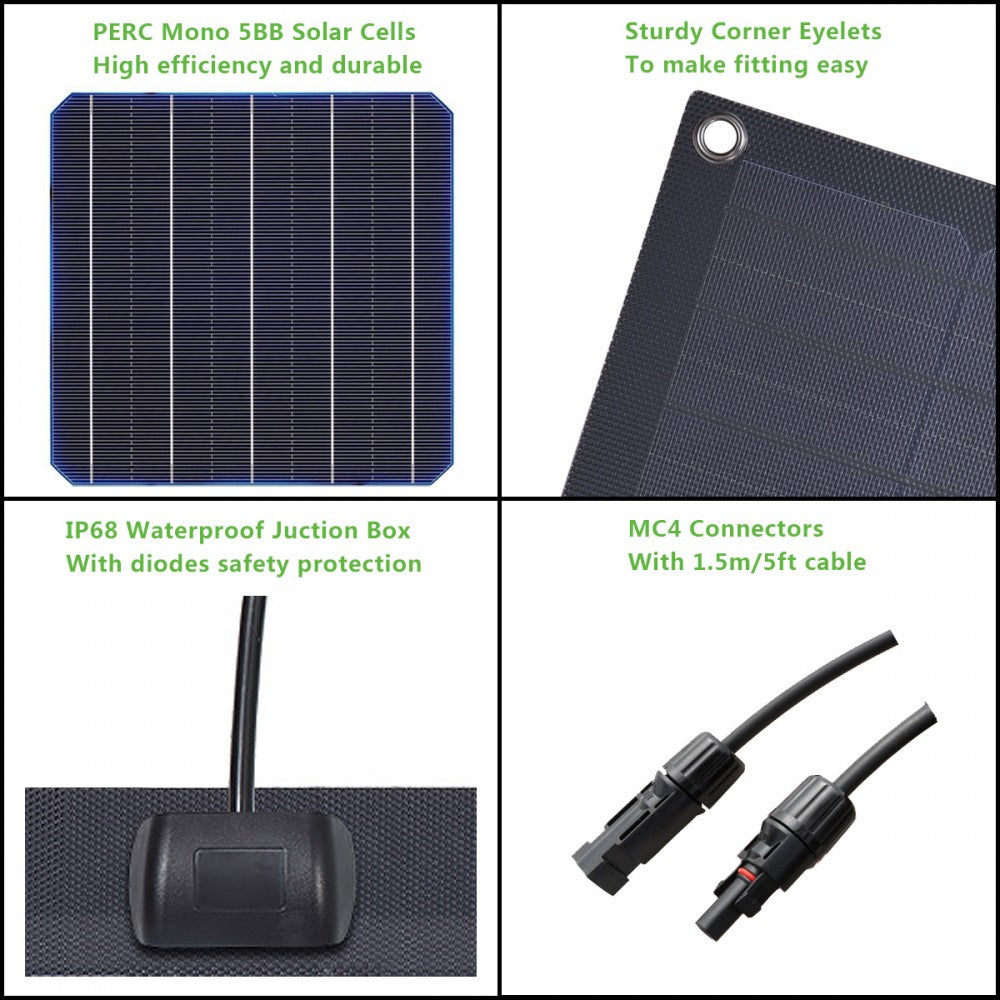

The 5BB(5-busbar) technology that optimizes electricity collection and ensures optimal electricity yield from your system. And 5BB technology batter performance against crack than the other 2BB, 3BB or 4BB technology.

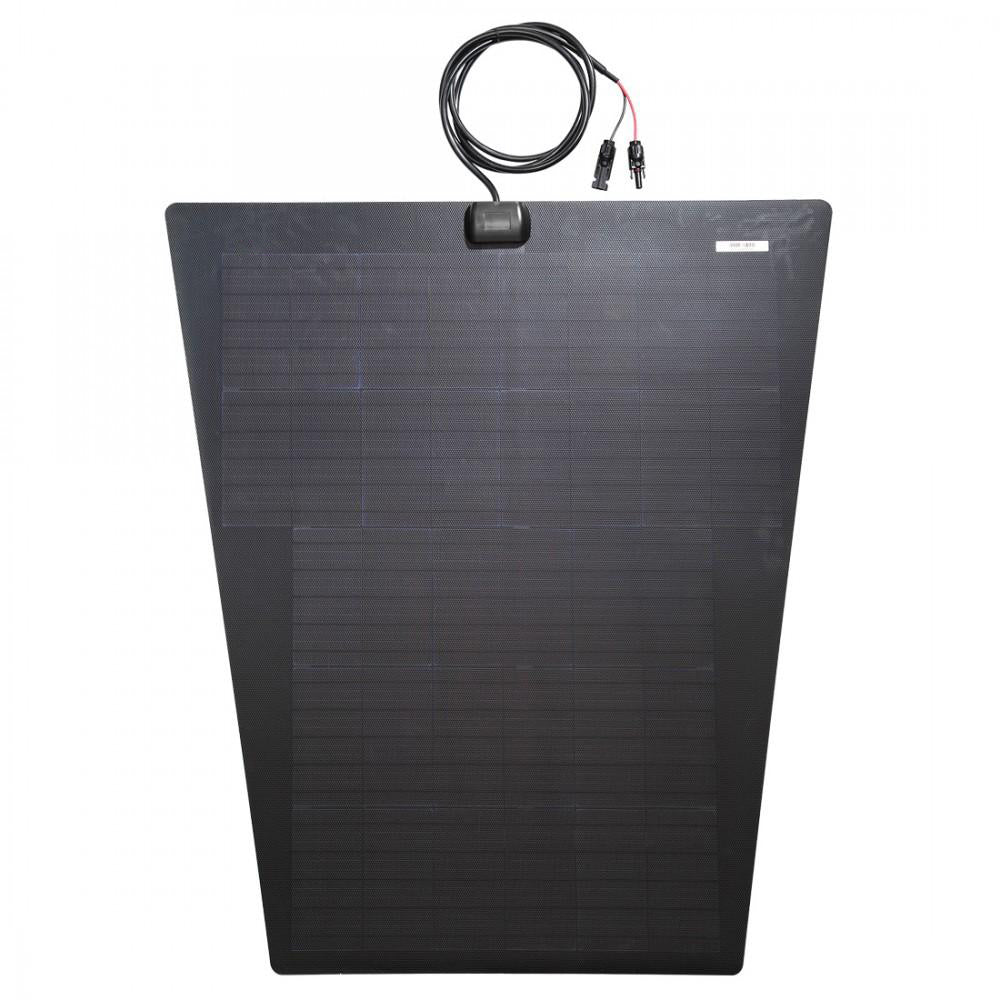

85W ETFE Flexible Solar Panel Feature
1. Solar cell: Grade A PERC Monocrystalline solar cells with much higher efficiency and more durability than other mono solar cells.
2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. ETFE also has self-cleaning abilities, ensures the best performance day after day.
3. Backboard: Durable fiberglass substrate backboard, better heat dissipation than PET backboard which ensures a long lifetime. ETFE film and fiberglass backboard can withstand extreme environmental conditions, maintenance-free for years.
4. Ultrathin: At only 3mm thick, the solar panel is powerful, waterproof, lightweight, durable, and highly resistant to the harsh operating conditions of a marine environment.
5. Ultra Lightweight: Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels. They’re a great choice where you want big power without sacrificing fuel economy, or don’t want any extra weight on your roof that may affect your center of gravity.
6. Installation: Can be fixed by adhesive, grommets, zip ties, or velcro; Can be installed without costly structural roof reinforcements. Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.
7. Curve: Extreme curves, reverse curves, or uneven curves can damage the panels, so be sure to support the solar panel during installation and fitting into place. Do not bend the solar panel more than 20°.
Why is etfe superior?
ETFE solar panels have a better light penetration percentage of 95%. They contain fluorine atoms that bond to the panel's EVA, ensuring it will never delaminate or discolor as time pass. The textures finish of ETFE solar panels makes them dirt-resistant and self-cleaning, minimizing the impact on solar output.
ETFE film is weatherproof and is also heat, fire resistance, corrosion, and UV resistant.
The age of ETFE laminated membrane is up to 25 years. Later can recycle it for other purposes, 100% recyclable.
|
|

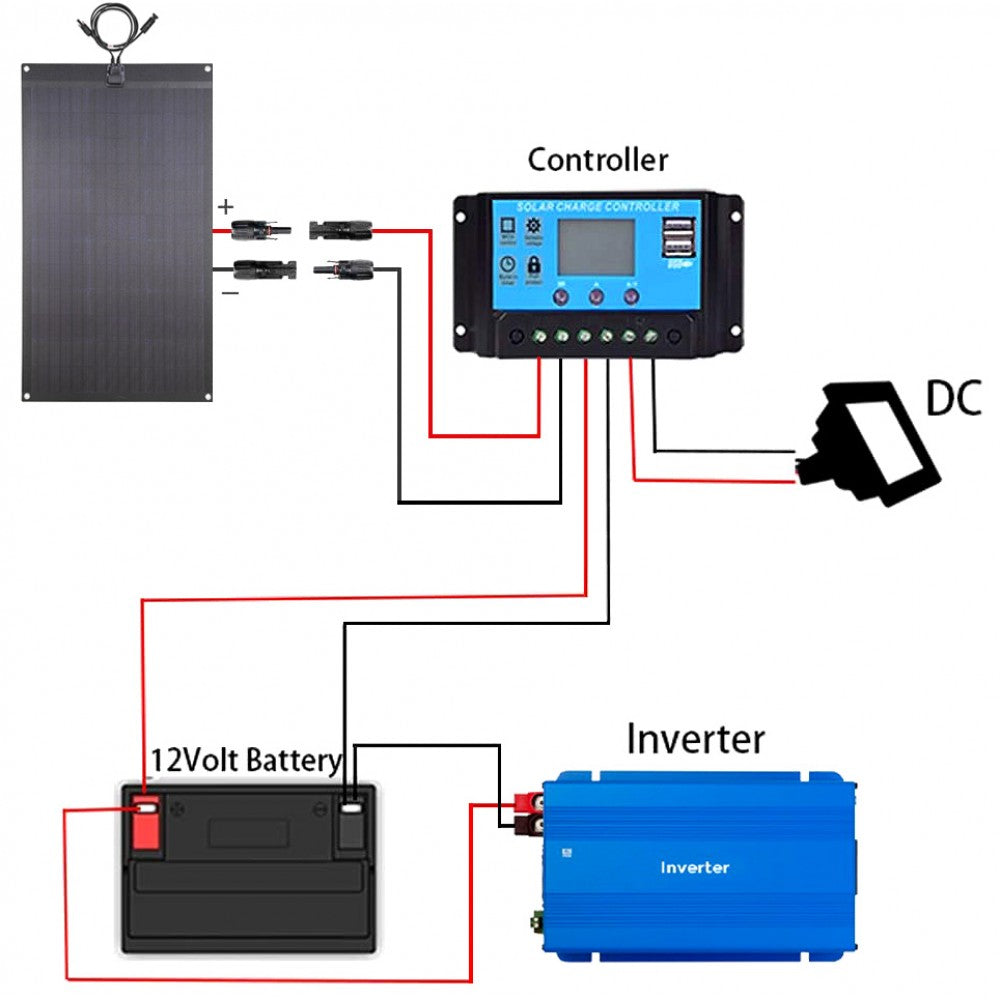

If you are planning to use this solar panel to charge a 12V battery or battery bank, please note this panel requires a solar charge regulator / controller to protect against overcharge and discharge.
Electrical Information:
Peak power: 85W
Solar cell efficiency: 22/%
Maximum power voltage: 17V
Maximum power current: 5A
Open circuit voltage: 21.24V
Short circuit current: 5.5A
Power allowance range: +/-3%
Maximum system voltage: 500V
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
Material Information:
Laminated for weather resistance
Laminated with fiberglass + ETFE + Silicon cell + EVA + Tedlar
Solar cells: Monocrystalline
Net Weight: 2.8kg/6 lbs
Back sheet: Fiberglass
Cable: 2m/6.5ft with MC4 connectors
Package Includes:

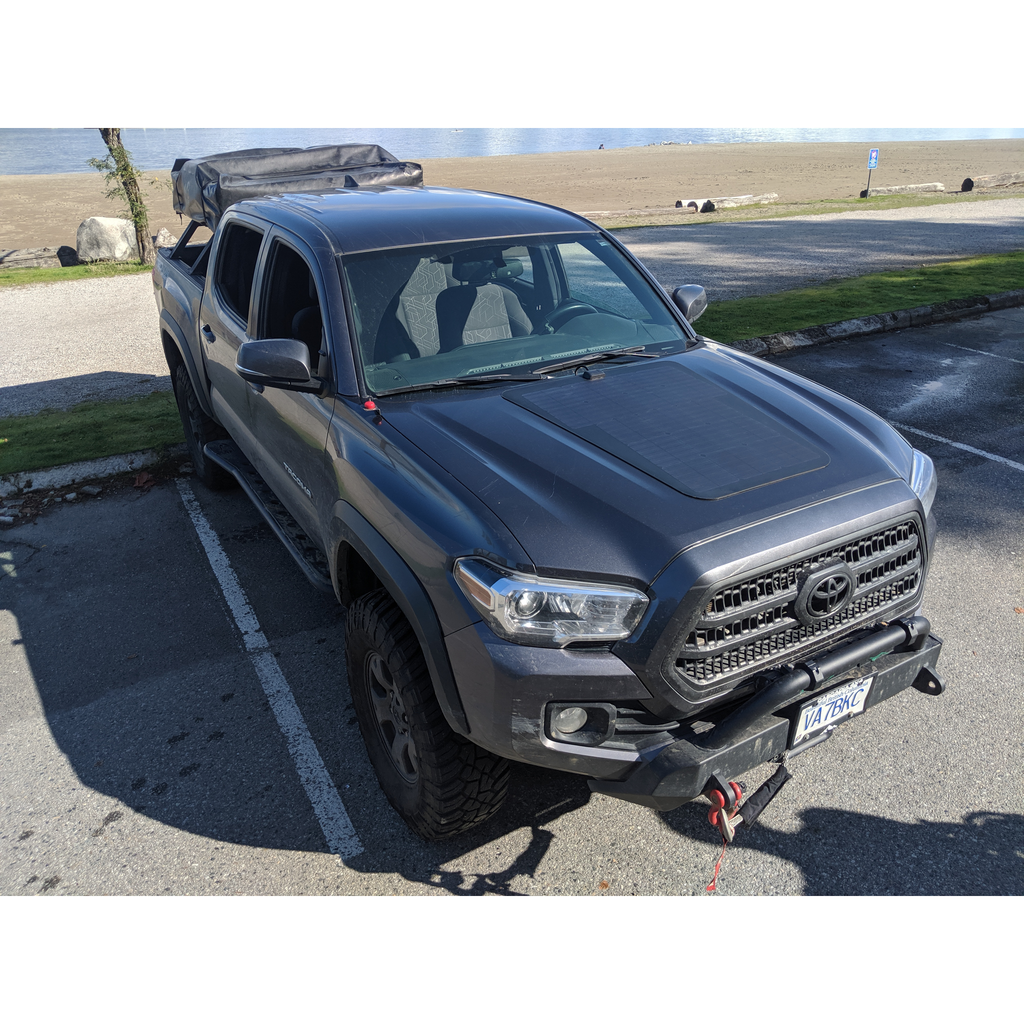

1x 85W flexible solar panel for Toyota Tacoma 3rd Gen (2016-Present)
